System feature:Several yearS of experience proves that there are two issues need to be solved immediately in the multicomponent high   salt waste water treatment system that currently used in the pharmaceutical chemical industry.

1 Running Stability (pipe blockage, scaling, low concentration on the final end)

2. Running Cost

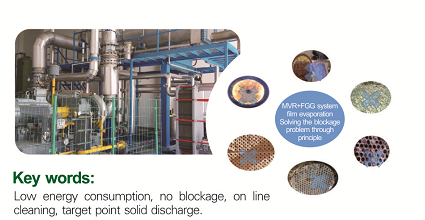

The above  problems can be solved by adjusting MVR+FXGG Model

High Efficient Horizontal thin film evaporator system。

MVR+FXGG system is consisted of two units: MVR refer to recycling compression machine group of the secondary steam. Through recycling and utilization of the energy in the process, it almost will not use additional water vapor for heating, only able power energy is consumed (general 32degree/ton waste water），the energy consumption is very little.

F×GG refers to the high efficient continuous pipe rotating film evaporation system. Due to the principle of molecular short-range evaporation, it can get high evaporation efficiency and low energy consumption, no blocking pipe, self­ cleaning in running. It can evaporate and the waste water directly into solid and discharge it with concentration 90 ～99% under simple process. Compared with any of the waγs used in domestic at present. it reduces a lot of operations and procedures and get awaγ from the troubles (frequent blocked tube and a lot of time for cleaning ). because of the evaporation system adopts the principle of thin film evaporation. especial!γ, the evaporation efficiency will be improved obviously, this will greatly reduce the size of our equipment. Therefore, civil engineering investment. e.g. area coverage, operation management, man power and running costs will be greatly reduced.

The advantages for adopting MVR” Mechanical Steam  Recyclec mpressi   n + FXGG” High  Efficient Evaporation Drying System are as followed Under the same working condition, the evaporation efficiency can be increased by several times than the traditional one.High efficient evaporator is heated  through inside of the tube and evaporate the waster water outside of the tube. the  heating  surface  has self-cleaning function, there is no jam. no blockage with automatic discharge function. therefore. this system can achieve real solid discharge with evaporated concentration. The height of the equipment is reduced by 1/2. the total area of the plant is reduced by 40%. If apply the layout of vertical double floor，the coverage area will be even  more.The evaporation, concentration and drying of the waste water can be finished within one machine  with  simple  operation  and strong.control   which   is  able  to   achieve   the  entiresystem automatic control.Therefore, MVR+F×GG Waste Water Treatment System is the most advanced evaporation drying  system  and  energy recycling system. System application scope: 1. Multicomponent High Salt Waste Water Treatment. 2.  Production of pharmaceutical and chemical products in the form of liquid to liquid phase deep concentration. 3.  Production of pharmaceutical and chemical products in the form of liquid to Solid phase evaporation concentration. Several System Configurations: 1.Hot  pump+  F×GG  evaporation  concentration  system:  applicable to the  concentration  of  industry waste  water treatment with process capacity less than 1 t/h. Applicable to pharmaceutical and chemical products. 2.MVR+FXGG   Evaporation  Concentration  System:  applicable  to  the  concentration  of  industry  waste  water treatment with process capacity more than 1 t/h. Applicable to pharmaceutical and chemical products. System design and application procedure are: Sample  test-extract   data  from  testing-  provide   manufacturing  design-manufacturing-installation-adj usting­

Excipients Production Line:running：

Achieve highest production efficiency, lowest cost. latest design philosophy, best quality, cleanest production environment and satisfaction of GMP requirement.

4’Dextrin  Production  Line: GMP design philosophy,  high efficiency stir  drying equipment and full sealed automatic

running. Production Capability: 1500tons-2000tons/year.

+Sodium Carboxymethyl Starch Production: GMP design philosophy，latest model drying equipment，recover of solvent and f ull sealed automatic running system.Production Capacity: 300tons-5000tons/year.

4 Magnesium Stearate Production Line: GMP design philosophγ，latest model drying equipment. prevention of dust and full sealed automatic running system.Product ion Capacity: 300tons-3000tons/year.

+Cellulose Production Line: a full set of production line can be produced according to customers ’  requirement.
