Full Capacity（（ M3):0.06   3

Features:

Compact structure, even mixing or drying, low energy consumption.  cleaning easy, auto discharge, no residue  and no dead corner.

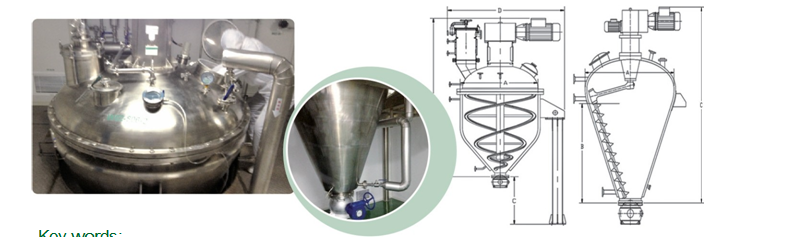

Agitation type:  Double  blade  "revolution  and  rotation”，single  blade  rotation  or  double  blade  opposite  rotation.  Orrotation type can be customized.

Cooling and heating: A jacket is installed outside the vessel. Cold or hot medium which can be water. steam or oil is charged into the jacket to achieve cooling or  heating.

Feeding method: Automatic or manual. In related low production rate process. the top cover design is total open, easy for  feeding  and cleaning manually.  The feeding  method can be customized.

4’Discharge ways:   According  to the  mixing feature,  it is applicable for mixing and drying with  powder  material.

+The equipment material can be customized.

Specification

Type/Item	Volume  ( M3 )	Loading co-e仔1ciency	Motor power	Size(mm) max diameter食height	Weight(kg)
LDHH-0.06	0.06	0.4-0.6	1.5	715*1569	120
LDHH-0.1	0.1	0.4-0.6	2.2	920*1929	220
LDHH-0.3	0.3	0.4-0.6	2.2	1140*2322	320
LDHH-0.5	0.5	0.4-0.6	4	1480*2869	410
LDHH-1		0.4-0.6	7.5	1633*3140	900
LDHH-1.5	1.5	0.4-0.6	11	1816*3489	1200
LDHH-2	2	0.4-0.6	11	2040*3760	1300
LDHH-3	3	0.4-0.6	15	2250*4425	2400
LDHH-4	4	0.4-0.6	18.5	2548*4940	2500
LDHH-6	6	0.4-0.6	22	2780*5360	2850
LDHH-8	8	0.4-0.6	30	3018*5815	4250
LDHH-10	10	0.4-0.6	37	3204*6100	5200
LDHH-12	12	0.4-0.6	45	3442*6540	5800
LDHH-15	15	0.4-0.6	55	3650*7050	6300
